Multipurpose Air Hose

The multipurpose air hose has always been at our core. The category of multipurpose typically includes those specs traditionally produced in long lengths (think 500 to 700 feet) on reels. Also known as general-purpose hose, these specs are made with a smooth cover offered in a variety of colors and from sizes ranging from 1/4 inch to 2 inches. Unisource multipurpose air hoses provide the best combination of performance, durability, and ease of use. The rubber tube and covers range from EPDM (excellent chemical, temperature, and environmental resistance) to Nitrile (the best oil resistance). Pressure ratings of multipurpose air hoses will go as high as 300 PSIG working pressure. Most of our multipurpose air hose specs will have maximum temperature ratings of about 200 Deg. F., providing superior performance in high-temperature air tool applications.

For multipurpose specialty hoses, check out our Multipurpose Specialty Hose section. This section includes PVC air hose, paint spray air hose, and push-on hose, among others. For the most rugged and high-pressure rated air hose, select our Air Drill Hose – Mandrel Built section. Here you will find wrapped cover hoses in both textile and wire reinforced styles.

None of the air & multipurpose hose listed here should be used for petroleum or oil service. Refer to our Petroleum Hose section for information on hoses suitable for this service.

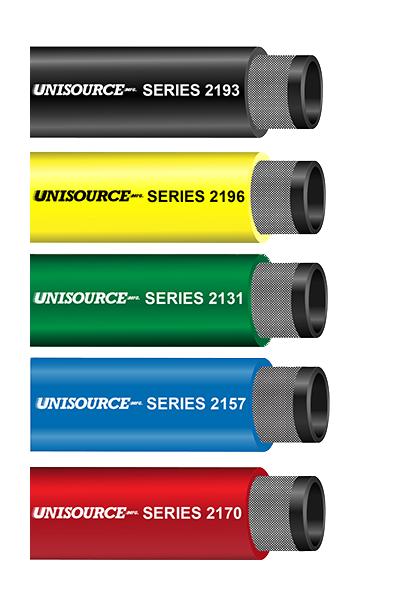

Series 2131 Multipurpose Air Hose – Green

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Green EPDM

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand

Origin:

USA

Applications:

Economical and versatile general purpose hose. Excellent for air and water service as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone, and weathering. Suitable for applications such as oil mist lubricating airlines, but NOT suitable for the transfer of petroleum products.

Part
Number
I.D.
(In)
O.D.
(In)
W.P.
(PSI)
Weight
(Lbs / Ft)
Std.
Length
Stock (Yes)
or Min. Order
2131-502501/2.81250.19600'Yes
2131-752503/41.15250.35600'Yes

Series 2157 Multipurpose Air Hose – Blue

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Blue EPDM

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F

Design Factor:

4:1

Branding:

Ink brand

Origin:

USA

Applications:

Economical and versatile general purpose hose. Excellent for air and water service as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

Part
Number
I.D.
(In)
O.D.
(In)
W.P.
(PSI)
Weight
(Lbs / Ft)
Std.
Length
Stock (Yes)
or Min. Order
2157-502001/2.81200.19600'Yes
2157-752503/41.15250.35600'Yes
2157-753003/41.15300.35500'5000'
2157-10020011.44200.54400'5000'

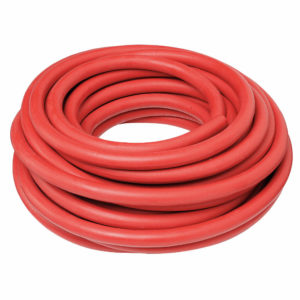

Series 2170 General Purpose Hose – Red

Tube:

Black EPDM (ARPM Class C ORS)

Reinforcement:

Multiple textile spirals

Cover:

Red EPDM

Temperature Range:

-40 Deg. F. to 190 Deg. F

Branding:

Ink brand – white letters

Origin:

USA

Applications:

An economical and versatile general purpose hose. Excellent for water service, as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering.

Part
Number
I.D.
(In)
O.D.
(In)
W.P. (
PSIG)
Weight
(Lbs / Ft)
Std.
Length
Stock (Yes)
or Min Order
2170-252001/40.482000.08750'Yes
2170-382003/80.662000.13750'Yes
2170-502001/20.782000.17700'Yes
2170-632005/80.932000.26700'Yes
2170-752003/41.082000.33500'Yes
2170-10020011.392000.52400'Yes
2170-1252001-1/41.632000.57400'Yes
2170-1502001-1/21.882000.68300'Yes

Series 2192 Multipurpose Hose – Red

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Red EPDM (ARPM Class C ORS)

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F

Design Factor:

4:1

Branding:

Ink brand – white letters

Origin:

USA

Applications:

Economical and versatile general purpose hose. Excellent for air and water service as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. This hose exceeds ARPM Class C oil resistance requirements. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

Part
Number
I.D.
(In)
O.D.
(In)
W.P.
(PSI)
Weight
(Lbs / Ft)
Approx.
Reel Length
Stock (Yes)
or Min. Order
2192-252501/4.53250.09750'Yes
2192-253001/4.53300.10750'Yes
2192-382503/8.70250.16750'Yes
2192-383003/8.70300.17750'Yes
2192-502001/2.81200.20700'Yes
2192-503001/2.84300.22700'Yes
2192-632005/8.97200.27700'Yes
2192-752003/41.12200.34500’Yes
2192-753003/41.15300.37500’Yes
2192-10020011.44200.54400’Yes
2192-10030011.48300.58400’Yes
2192-1252001 1/41.73200.75300'Yes
2192-1502001 1/21.98200.86250'Yes
2192-20020022.502001.16200'Yes

Series 2193 Multipurpose Hose – Black (200 PSI)

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Black EPDM (ARPM Class C ORS)

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F.

Design Factor:

4:1

Branding:

Ink brand – white letters

Origin:

USA

Applications:

An economical and versatile general purpose hose. Excellent for air and water service, as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. This hose exceeds ARPM Class C medium oil resistance requirements. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

Part
Number
I.D.
(In)
O.D.
(In)
W.P.
(PSI)
Weight
(Lbs / Ft)
Std.
Length
Stock (Yes)
or Min. Order
2193-252001/4.50200.09750'5000'
2193-382003/8.67200.14750'5000'
2193-502001/2.81200.20700'5000'
2193-632005/8.97200.26700'5000'
2193-752003/41.12200.35500'5000'
2193-10020011.44200.54400'5000'
2193-1252001 1/41.73200.67400'5000'
2193-1502001 1/21.98200.79300'5000'
2193-20020022.562001.13100'2500'

Series 2194 Multipurpose Hose – Class A ORS (Non-Conductive)

Tube:

Black Nitrile (ARPM Class A ORS)

Cover:

Red Nitrile/PVC (ARPM Class B ORS)

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F

Design Factor:
4:1
Branding

Ink brand – white letters

Origin:

USA

Applications:

A premium quality, multi-purpose hose with excellent flexibility and maximum resistance to air, water, petroleum oils, and lubricating oils. Approved for breathing applications such as supplied air respirators. The non-conductive construction has a minimum one megohm resistance per inch at 1000 volts DC.

Part
Number
I.D.
(In)
O.D.
(In)
W.P.
(PSI)
Weight
(Lbs / Ft)
Std.
Length
Stock (Yes)
or Min. Order
2194-253001/4.54300.09700’5000'
2194-383003/8.69300.17700’Yes
2194-503001/2.86300.22700’Yes
2194-753003/41.19300.36500’Yes
2194-10030011.50300.54500’Yes
2194-1252501 1/41.77250.67300’Yes
2194-1502501 1/22.08250.85300’Yes

Series 2196 Yellow Multipurpose

Tube:

Black EPDM (ARPM Class C ORS)

Cover:

Yellow EPDM

Reinforcement:

Multiple textile spirals

Temperature Range:

-40 Deg. F. to 210 Deg. F

Design Factor:

4:1

Branding:

Ink brand

Origin:

USA

Applications:

Economical and versatile general purpose hose. Excellent for air and water service as well as many agricultural chemicals including Lasso® herbicide. EPDM tube and cover resists heat, sunlight, ozone and weathering. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products.

Part
Number
I.D.
(In)
O.D.
(In)
W.P.
(PSI)
Weight
(Lbs / Ft)
Std.
Length
Stock (Yes)
or Min. Order
2196-502501/2.81250.19600’Yes
2196-752503/41.15250.35600’Yes
2196-753003/41.15300.35600’5000’
2196-10025011.44250.54400'5000’
